Derivative Approximation

This example demonstrates the use of conditional distribution embeddings to compute an approximation of the first and second derivatives of a function,

\[f(x) = x^{3} - 4 x^{2} + 6 x - 24 + \exp(-x)\]

We use an idealized dataset, which approximates the partial derivatives well. Introducing noise to the dataset creates fluctuations that needs to be offset by a higher regularization parameter and smoother kernel.

To run the example, use the following command:

python examples/kernel/derivative_approximation.py

import numpy as np
from functools import partial

from gym_socks.kernel.metrics import rbf_kernel
from gym_socks.kernel.metrics import rbf_kernel_derivative
from gym_socks.kernel.metrics import regularized_inverse

from time import perf_counter

import matplotlib
from matplotlib import pyplot as plt

Generate the Sample

The following sample is idealized in order to demonstrate the technique. Additive noise causes fluctuations in the derivative approximation.

sample_size = 200
X_train = np.linspace(-5, 5, sample_size).reshape(-1, 1)
y_train = X_train ** 3 - 4 * X_train ** 2 + 6 * X_train - 24 + np.exp(-X_train)

# Uncomment the following line to incorporate noise in the sample.
# y_train += 10 * np.random.standard_normal(size=(sample_size, 1))  # Additive noise.

X_test = np.linspace(-4, 4, 1000).reshape(-1, 1)

Kernel and Parameters

sigma = 0.1
kernel_fn = partial(rbf_kernel, sigma=sigma)
regularization_param = 1 / (sample_size ** 2)

Compute the Approximation

start = perf_counter()

G = kernel_fn(X_train)
K = kernel_fn(X_train, X_test)

W = regularized_inverse(G, regularization_param=regularization_param)

C = rbf_kernel_derivative(X_train, sigma=sigma)
D = rbf_kernel_derivative(X_train, X_test, sigma=sigma)

y_pred = y_train.T @ W @ K
y_pred_d1 = -y_train.T @ W @ (K * D)
y_pred_d2 = (y_train.T @ W @ (G * C)) @ W @ (K * D)

print(perf_counter() - start)

0.019109775999822887

Plot the Results

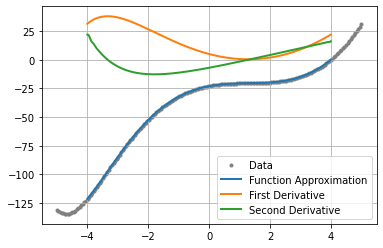

We then plot the original function, the first derivative, and the second derivative against the original data.

fig = plt.figure()
ax = plt.axes()
plt.grid()

plt.scatter(X_train, y_train, marker=".", c="grey", label="Data")
plt.plot(X_test, y_pred.T, linewidth=2, label="Function Approximation")
plt.plot(X_test, y_pred_d1.T, linewidth=2, label="First Derivative")
plt.plot(X_test, y_pred_d2.T, linewidth=2, label="Second Derivative")

plt.legend()

plt.show()
